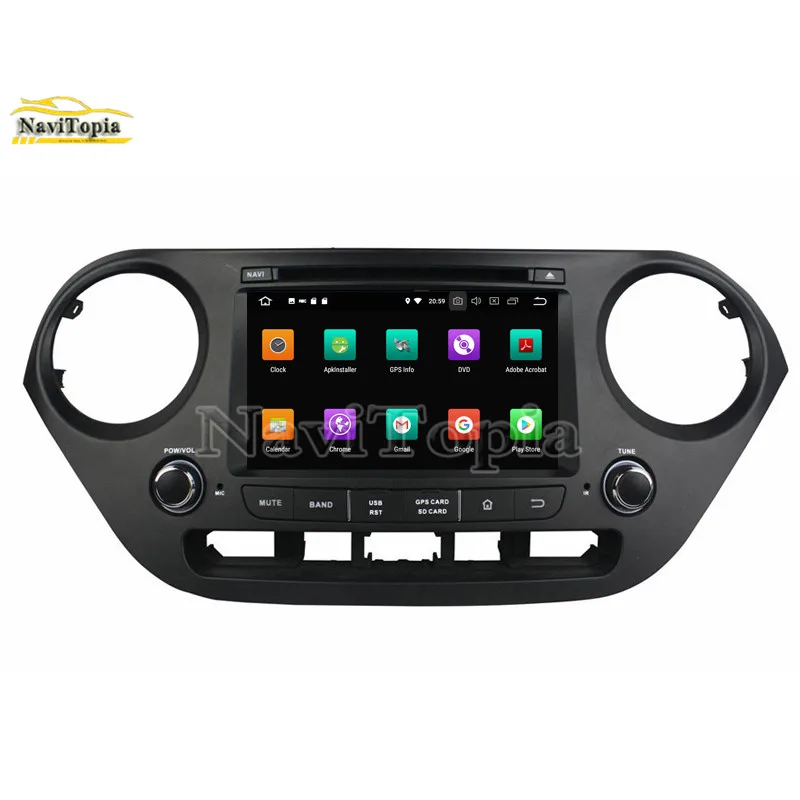

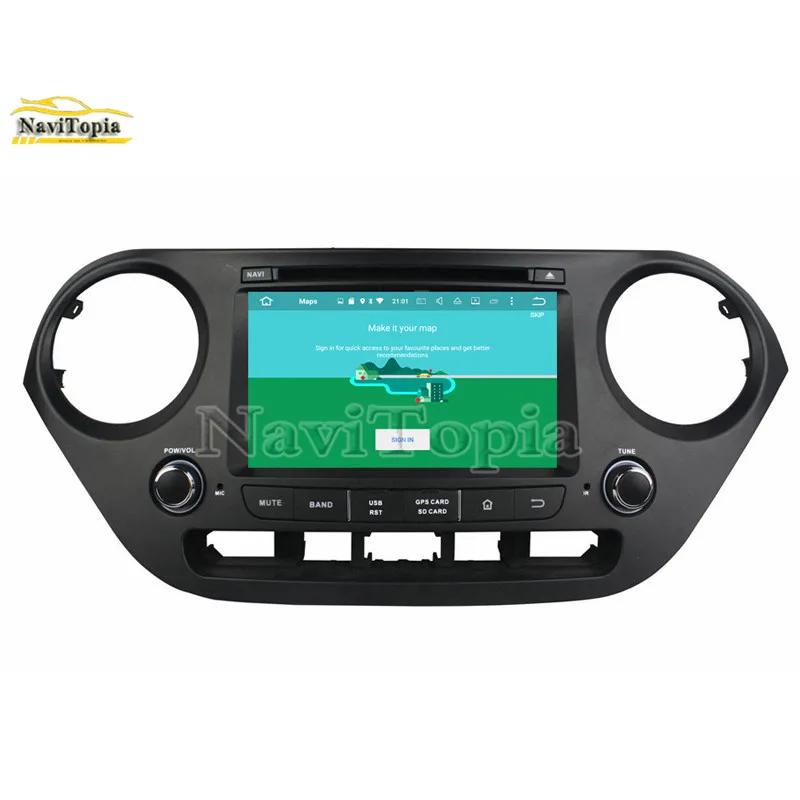

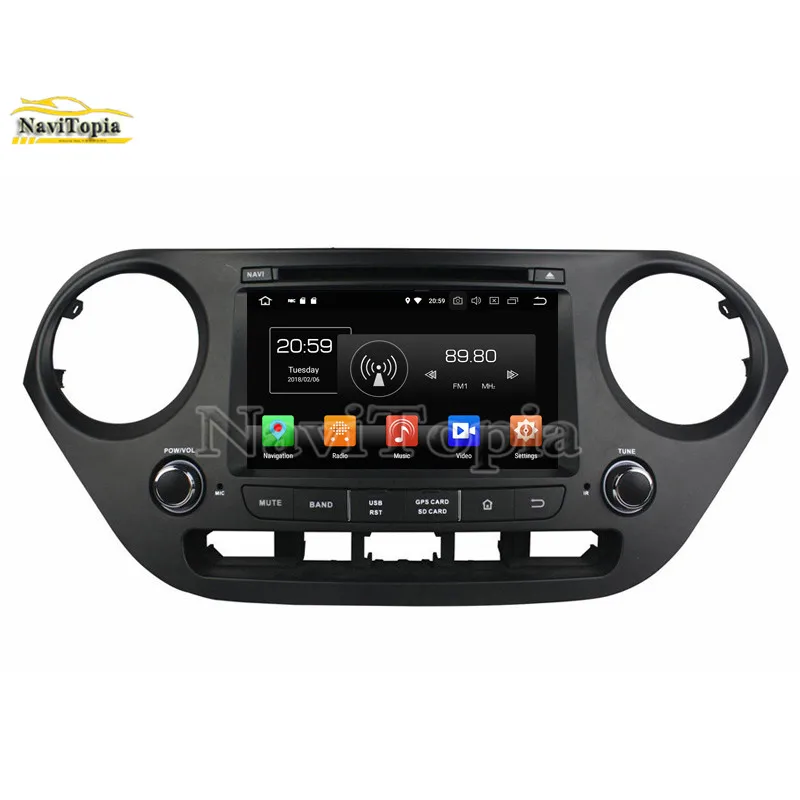

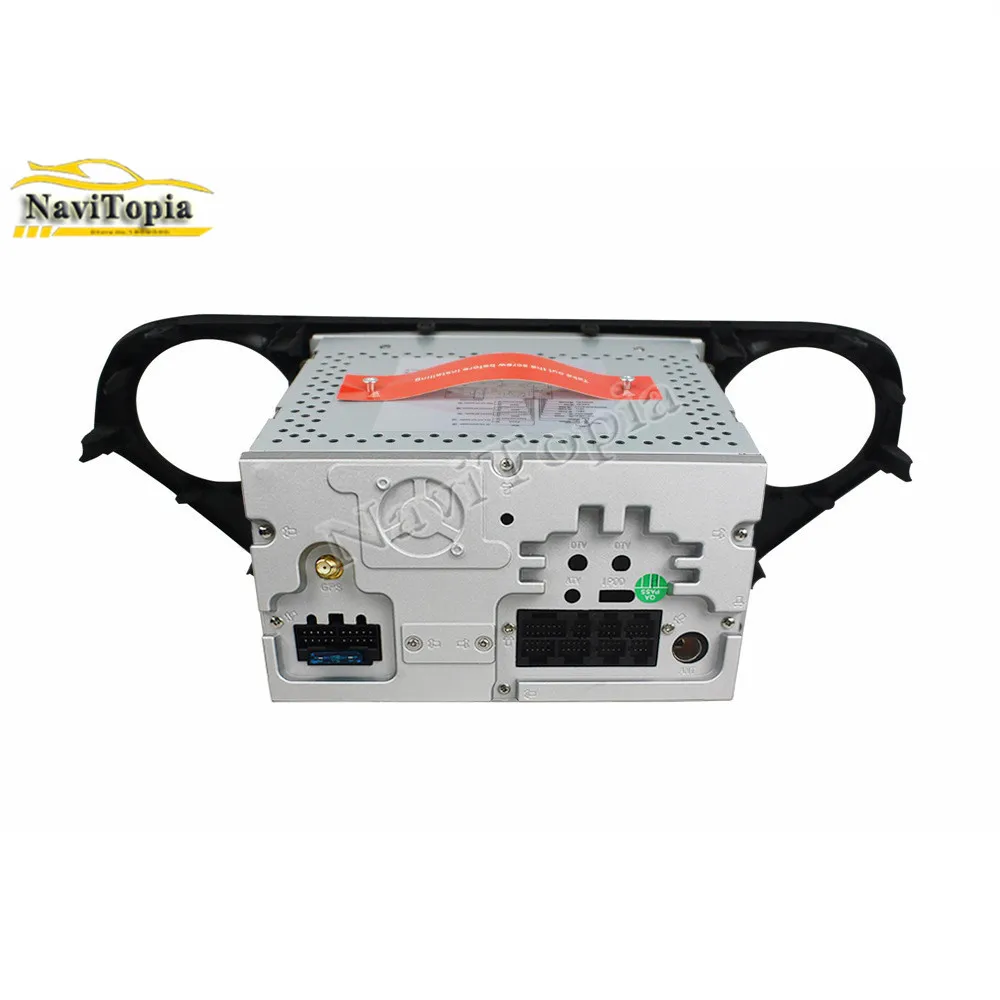

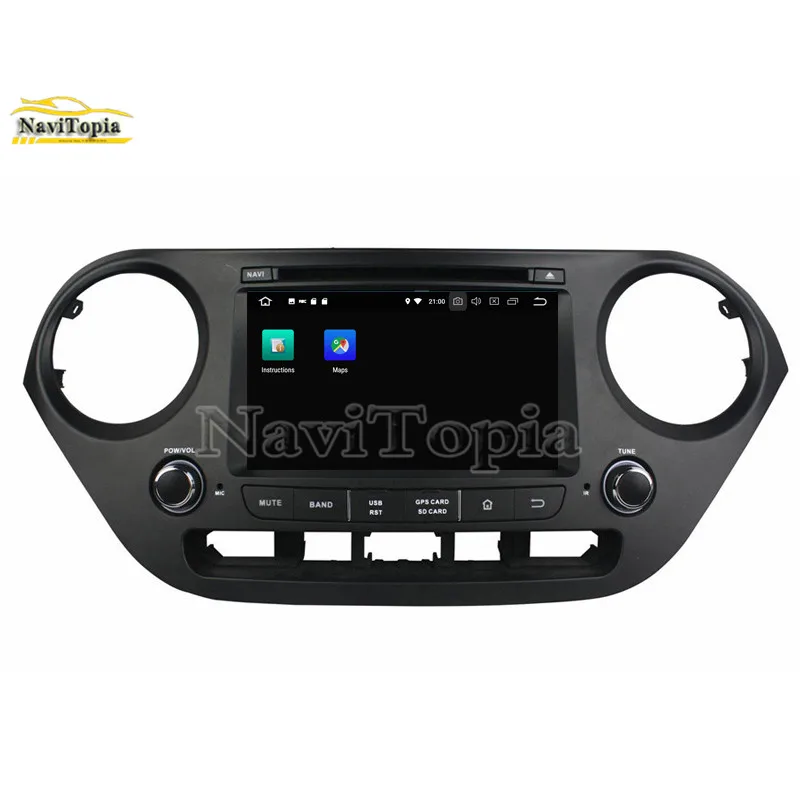

Android 9.0 Quad Core 64G Touch Screen Car DVD Player with SD Card &Free Map+GPS+Radio+RDS+Bluetooth+WiFi+Mirror LinkBasic Information:1.Pure Android 9.0 System Car DVD player 2.Capacitive Screen 3.Multi-Touch Screen 4.OS: Android 9.0 system5.CPU: Rockchip PX5 Cortex A53, 8-core Octa Core 6.RAM: 4GB,DDR37.NAND: 64GB 8.Main Frenqency: 1.6GHz 9.Outside OBD function10.Support DVR function 11.Support mirror link function12.Screen resolution:800*480/1024*600 13.Radio: FM/AM14.GPS:SIRF III15.Screen: Capacitive and multi-touch screen (Original Hanstar Screen )16.TFT drive IC: RK PX517.Loader: FORYOU DL-3018.Pick up: For HITACHI 860XH19.motor drive:MABUCHI20.Amplifer IC:For TOSHIBA 738421.DVD decoder IC: Sunplus 8202VGQ22.Radio IC: ST TDA770623.Power supply: 4*45W24.Bluetooth: Free Wing FM350725.Video Decoder: 1080P HW26.WIFI: Built in27.DVR: USB Camera (PC Standard)Basic Function:GPS:Support series of GPS software and network map.DVD:Support OSD Touch Function(DVD/DIVX/MP4/MP3/MP2/VCD)AM/FM Radio: RDS function and support saving 30 stations.TV Function:Support DVB-T/ISDB/ATSC (option)Bluetooth Handsfree:Support Chinese/English phonebook, call log, music play, and Bluetooth data transfer.Interface:Support audio playing for ipod.(option)WIFI: Wireless internet access and hotspot sharing function.Movie Format:Support all Android videos, streaming media playing and 1080P video decoder, such as MPEG-1/2/4,H264,RMVB,DivX, etcMusic Format:Support MP3,WMA,WAV,AC3,OGG,FLAC, etc, and network audio playing.Picture Format: Support JPEG, BMP, PNG, TIFF, etc.Document Format: PDF, Word, Excel; support all Android application software.Support external 3G Module to surf the internet.(option)Canbus box (option)1 x AUX AV-out, 2 x AUX AV-in, 1 x Subwoofer audio-out, 1 x Rear CameraVideo Rearview systemSupport two SD ports and two USB interfaces. Under 64G SD card and under 500G USB flash disk are available.Support RGB backlight; multiple colors are available.OSD Language: Support multiple languages (Chinese, English, Russian, Japanese, Portuguese, etc.)Automatic backlight dimming in the night makes night driving more convenient and helps to reduce visual fatigue.Navigation, watching movies and enjoying music can achieve synchronization.To freely install applications which can work in the Android6.0 OS .EQ: Treble/mid/bass. Jazz, Pop, Classic, and various sound modes are available.Special Function:Cool and characteristic UI interface; support Android animated wallpaper.Full touch screen; support all Android applications.Humanized music playlist makes operation more flexible; support MP3, WMA, WAV, AC3, OGG, FLAC, etc.And some audio coding, like MP1/2/3,OGG, APE,RM,SIPR,ATRC,WMA,AC3,FLAC,AAC also can be compatible.High-definition video decoder function, supports multiple video format, like DAT, MPG, MPEG, VOB, MP4, MOV,AVI, DVD Video, ASF, WMV, MKV, TS, RM, RMVB, etc, and various video decoder, like H.264, Xvid, MPEG2,MPEG4, VC-1, WMV9, MPEG1, H.263, Divx. Support full HD resolution (up to 1080P),and HD/standarddefinitionsuch as 1360×768(768P), 1280×720(720P), 1024×576(576P)and so on also can be compatible.Any picture in the file can use to be boot screen or wallpaper. Support JPEG, BMP, PNG, TIFF, etc.Internet function can make GPS map automatically achieve time synchronization.RGB backlight can make multiple colors select.One hundred car logos are available to be boot screen or you can select custom image from SD card.Built-in BT can transmit OBD information. It is also available to external OBD vehicle information system.(option)Automobile data recorder.To achieve audio, video and picture in the phone synchronized playing when interconnecting Android or IOS phone with hosts WIFI.DVD player can be operated by full-touch mode; support DVD/VCD/CD/MP5/RMVB/MP3/AVI/CD-R/WMA/JPEG, etc.Totally enclosed movement can effectively prevent dust.Built-in WIFI and hotspot sharing function.3G wireless internet( optional ) High resolution LCD makes character much clearerSupport series of GPS software. Online map, IGO Primo, sygic , TomTom, etc are all availableKey Feature:Android 9.0 OS.Full-touch screen; support all Android applications.RAM:DDR3 4GB. Flash:64GBExternal OBD vehicle information system and automobile data recorder.(option)Built-in WIFI and hotspot sharing function.Built-in BT 2.0 A2DP; Chinese/English phonebook, call log, music play, Bluetooth data transfer.RGB backlight can make multiple colors select.To achieve audio, video and picture in the phone synchronized playing when interconnecting IOS phone with hosts WIFI.Support PDF, Word, Excel document format.Under 64G SD card and under 500G USB flash disk are available.Note:big screen (9inch and more) without DVD function,and can't put CD.FAQ:Q:Does the car dvd support my car?A:Pleasetake the dash board picture of your car and please tell us your car specific model and which year it is,thanks.Q:Does the car dvd support my amplifier?A:if your car comes with factory amplifier, then need to add CAN BUS adapter to fit,or no sound after installtion.Q:Does the car dvd comes with Remote Control?A:Because our radio system fully upgraded, all are touch screen, so no remote control.Q: Does the car dvd support Digital TV ?A: yes ,our car dvd support DVB-T, DVB-T2, ATSC, ISDB-T . Just need to buy them together.Q: Does the car dvd support Steering wheel control ?A: yes ,support.Q: Does the car dvd support 3G internet ?A: yes ,but you need to buy a 3G dongle Modem.Q: Does the car dvd support Rear View Camera ?A: Yes,but you need to buy PAL and NTSC Rear view camera.Q: Does the car dvd support car Camera Recorder DVR Feathure ?A: yes, but you need to buy a USB camera . connect it with the car dvd by usb.Q: Does the car dvd has the bluetooth ,Wifi, RDS ? A: yesQ: Does the car dvd has MirrorLink Feathure ?A : yesQ: Does the car dvd has OBD tester Feathure ?A: yes,but need you buy a OBD tester.Q: Does the car dvd has my country language ?A: Our car dvd has all over the world language .such as Russian menu ,French menu, spanish menu...etc,nearly all the world language.Q: Is the screen of the car dvd Multi-touch ?A: yes ,our screen is Capacitor and Multi-touch.Delivery details1We normally ship within 5 days of receipt of cleared payment(excluding weekends and holidays).2We only ship to confirmed order address, your order address must match your recipient address.3International Buyers - Please Note:Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.4Buyer need to contact their local custom ASAP to get the parcel,we won't pay if your local ask you to hand the tariff,different country different policy.Some needs the tariff,but some not.And the tariff is different.Pls note it.And we won't get the parcel if you aren't willing to pay the tariff in your country.5 Delivery time (SPSR):itusuallytake10-20workingdays, notincludeholidayandweekend.delivery time (DHL):itusuallytake3-5workingdays, notincludeholidayandweekend.delivery time (EMS):itusuallytake5-8workingdays, notincludeholidayandweekend.There maybe some delay due to flight, holiday, weather, local post, local natural disster impact. if your shipment delays, we hope you can be patient, and at the same time contact us, we will try our best to help you.ReturnsWe have a very strict quality controlling system which promises that goods we produced are always of the best quality.The valid period of replacement is 7 days from the date of receiving the item, if this item has any problem when arriving, please feel free to contact us and please note keep it in original condition.It is buyer's responsibility to pay for return postage and ship the item back to us. We will send it back at our cost if this item is defective as report. Please inform us of the reason of your order revocation and send us a clear picture or a video as a proof. Items returned to us without a report will not be processed.Before our sending, we have checked all our items carefully, if you received a broken defective item, just keep the original package and make a photo to us within 3 days, just in 3 days after delivery we can make the claim to shipping company with your photo, however please note shipping company needs about 10-20 days to investigatethe case, so please be patient.warranty1 year of warranty and lifetime service.The warranty will not cover damage from improper installation, accident, misuse, abuse, improper wiring, and incorrect voltage operating the unit against the instructions in the owner's manual.For following situations, the item is out of free warrantyDamaged caused by:misused, improper installation and so on man-made faultWarranty seal removed or damagedOpened or repaired by unauthorized personNOTE:Please just install this unit by professional technician, also ask them to test it first before installation
